SawStreet Die Sort Technology Snapshot
Substrate Material: Any
Size: ≤ 300 mm diameter (12 inches)
Substrate Thickness: ≥ 50 microns (2 mils)
Die Size: ≥ 200 x 200 µm (8 x 8 mils)
Tape Manufacturer: ANY
Bumped Wafers, Ink Dots & Electronic Maps: Yes
Shipped Format:
  1. Waffle Packs
  2. Gel Packs
  3. Frame
  4. Grip Rings
Sign In Update Password Update ProfileLog Out
Home
About Us
About SawStreet Nearby Lodging
Contact UsNewsCalendar
Services
Grinding DicingDie SortInspection
Something else here
Careers
  • Die Sort
  • Equipment

Die Sort

Dime ComparisonSawStreet's automated pick and place equipment ensures the highest quality pick at competitive prices. SawStreet takes great care not to damage the topside of your die, by utilizing the most precise setup and sensitive tools. We will ensure your yield is maximized.

SawStreet can pick virtually any substrate material and has picked die as thin as 50 micron (0.002"). We can pick from either UV or Non-UV tape. Though we have standardized on certain UV and Non-UV tape we will use any tape manufacture you might specify. can work with ink dots for electronic maps and offers up to 16 different binning options.  While many of our customers prefer us to pick to waffle or gel packs, we also pick to grip rings or frames for shipment to customers.

SawStreet has both automatic and semi-automatic die picking capability and the ability to handle die as thin as 2 mils (50um) thick.  Circuits can be extremely fragile so proper tool setup is critical to the success of any die sorting (die picking) process. Many of the die we process have air bridges and SawStreet has many years of experience in handling these type of die.PickAndPlace Programming

During setup, the technician reviews the customer's requirements and matches the tool setup with the device requirements. During the picking process, the machine is stopped at periodic intervals to inspect a required amount of die under a microscope to ensure all requirements are being met.

SawStreet maintains and inventory on certain waffle packs or gel-paks. Customers can either send us their gel-paks or waffle packs to use or choose from the waffle packs or gel-paks we keep in stock. If you choose to send us your waffle pack or gel-paks we provide online capability for you to always track your inventory that we are stocking for you.

We keep the following gel-paks in stock at this time.

  • VR-16CC-02-X4
  • VR-33CC-02-X4
  • VR-76CC-02-X4
  • VR-103CC-02-XL

For information on what waffle packs we stock, please contact SawStreet sales.

MS 100+
Card image cap

High Speed Die Sorter

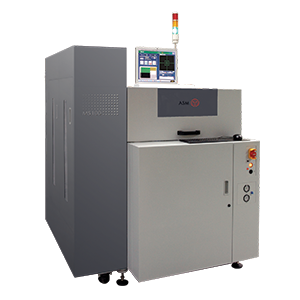

MS100 is a high speed die sorter with Cycle time of 120ms (net UPH of 30K). This die sorter is using the latest Motion technology which delivers a direct couple Bond head with dual Arm pick and place process. Frames, rings, gel-pak.

Go somewhere
MS 109
Card image cap

High Speed Die Sorter

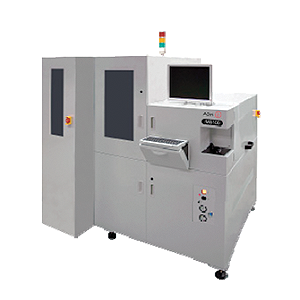

MS109 is a high speed die sorter with Cycle time of 120ms (net UPH of 30K). This die sorter is using the latest Motion technology which delivers a direct couple Bond head with dual Arm pick and place process. Output for frames/rings.

Go somewhere
DTS1
Card image cap

High Speed Die Sorter

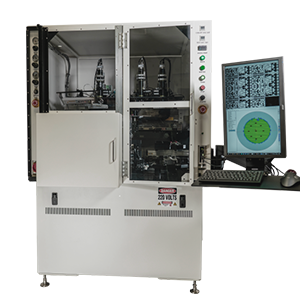

The DTS-1 is a fully automated die-sorting system which utilizes a single head with an optional inverter to complete die sorting. Depending on the productThe DTS1 has the ability to produce up to 6000 DPH throughput with +/- 15µm accuracy.

Go somewhere
MP 300
Card image cap

Die Sorter - 300mm (12")

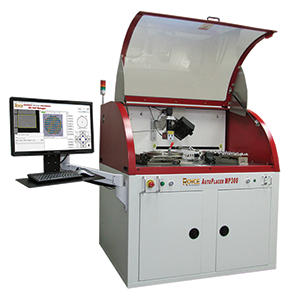

MP300 is an automated die sorter used in the semiconductor industry for medium volume/high mix applications. The MP300 can handle wafers up to 300mm (12") in diameter and excels in handling die sort applications for sensitive die.

Go somewhere
MP 300
Card image cap

Die Sorter - 200mm (8")

MP300 is an automated die sorter used in the semiconductor industry for medium volume/high mix applications. The MP300 can handle wafers up to 200mm (8") in diameter and excels in handling die sort applications for sensitive die.

Go somewhere
DE-35
Card image cap

Semi-Automatic Die Sorter

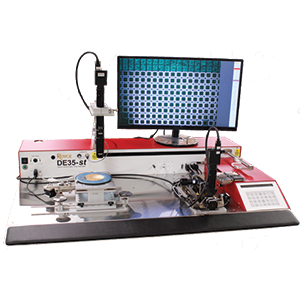

The DE35-ST semi-automatic die pick and place system is a staight-forward machine for picking die from sawn or scribed wafters mounted on adhesive film. Die can be placed into waffle packs, Gel-Pak®, film frame,or directly onto substrates.

Go somewhere
